New Koyo Alloy Radiator

FAULT FINDING:

I check the coolant level reasonably regularly, but one night the temperature-gauge went upslightly over the norm and after a while kept on rising so I banged the heaters on full blast and managed to limp the car about 2 miles home. Next day I discovered that the coolant had nigh-on disappeared! I filled the system back up with water - it took about 5 litres - to check for system failure and ran the car fortheweek,butthewater level stayed up and no sign of a leak. With no obvious evidence of failure my dad immediately suggested the head-gasket was blown and the coolant must have slowly gone through into the cylinders :( The mechanics at work backed up his claim and said that, because of the boxer-engine with a cylinder-head down either side, it was a nightmare job that needed the lump lifting out to do. I reckon I could do it without lifting the engine, but it would involve removing almost every other item from the engine bay. Rather that though than forking out for a professional to do it - I shudder to think how much that would cost. This could have been a killer blow for the Scoob, but all the other symptoms of a blown head weren't there - no oil in the water, mayonnaise in the oil, loss of power or rough-running.

At this point, with the levels staying up in the header-tank, I had to add coolant to the system to stop it rusting up, so I drained the water out, flushed it out with more water to get rid of any floating crud and re-filled it with a half and half mix of water and 3L of Halford's Advanced engine-coolant, which wasn't cheap at £24 (£7.99 per litre). I then checked the header-tank daily for a week with no change in the level.

Another two weeks of harder driving went by and I checked the coolant again. This time there was a definite drop in the level - the tank was only about a quarter full so I'd definitely hit a problem. Now I spotted the radiator. Its always looked battered but showed no signs of being split - I guess the old leaking coolant couldn't be seen as well as the fresh bright-pink stuff. By the look of the pink patches though, the radiator had burst in three places so it had to be replaced asap and I didn't know whether to be gutted over this or elated that it wasn't the head gasket...

NEW RADIATOR:

I had intended to put an all-alloy racing radiator on at some point, but these cost £130-£300 so to fit one now would kill my chances of buying brakes and stuff any time soon and I've got to move forward with the car. The OEM-spec radiators are all-alloy themselves [although not as chunky obviously and in a mild-steel surround] and less than half the price so it was a no brainer really to get the leak fixed. I scored one for £50 including next-day delivery off a guy called [dilley3613] on eBay - laughing. It's no cheap Chinese piece either, this is made by Koyo in Japan and, although its not quite as sturdy as the original one, its still looks a decent-quality part.

Fitting it was not a hard job at all. You only need a couple of spanners and there's not a lot to undo. There's plenty of space to work in a

nd the radiator lifts out clearly. Our only setback was the two bolts holding the radiator top-mounts were rusted so tight they snapped on the way out so we had to drill through and put a new bolt in with a nut underneath, which took ages. The top-mounts are all that hold the radiator on so check them for rust and WD40 them for about a week in advance to try and avoid the hassle.

PROCESS:

REMOVAL:

1. Jack the car up and remove the front under-tray by the two 10mm bolts on either side and the two 12mm bolts front and back. Lower the car.

2. Remove the radiat

or/header-tank cap to release pressure from the cooling-system.

3. Drain the cooling-system by placing a plastic-tube over the spout of the drain-valve at the bottom left of the back of the radiator and opening the valve. Drain into a clean bucket if you're re-using the coolant as I did and cover it straight afterwards.

4. Disconnect the fan wiring-socket by sliding a screwdriver down the slot in the connector until the two sides can be pulled apart.

5. On MY97/98 model cars the overflow-pipe from the header-tank is a thin metal tube that runs along th

e top of the radiator - later models won't have this. Disconnect

the overflow pipe from the system by removing the finger-clips and sliding off the rubber-hoses at each end.

6. Disconnect the rubber-hose from the overflow pipe at the top-left of the r

adiator by removing the finger-clip and sliding it off.

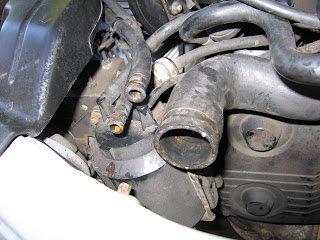

7. Disconnect the two large hoses from the top-left and bottom-right of the radiator by opening up the jubilee-clips with a flat-screwdriver. They will be sealed on tight, but should wiggle off easily once the seal is broken by pushing against the edge gently with a screwdriv

er. [It's worth putting a tray underneath the lower hose when you disconnect it as there will be a bit of coolant still pooled down there.]

8. Remove the two 12mm bolts holding the radiator top-mounts in place and tilt them up out of the bushes on the radiator.

9. Now the radiator can be tilted back, remove the single 10mm nut holding the PAS-fluid cooler in place. This is the two pipes that run over the radiator and

down the front. There is no need to disconnect the hoses from the PAS-coole

r as it can be tilted well clear for the radiator to be lifted out.

10. Slowly lift out the radiator, working the lower-bushes clear of their mounts.

11. Separate the fan and overflow-pipe from the old radiator by removing the two 10mm bolts at the bottom of the fan and the three 10mm bolts along the pipe at the top of the radiator. Also remove the top and bottom rubber-bushes to be reused.

REFITTING:

12. Bolt the fan and overflow-pipe to the new radiator using a 10mm wrench and re-insert the top two rubber-bushes.

13. Replace the bottom bushes to their mounts on the chassis. [The pins on the radiator are easier to use as a guide than putting the soft bushes on first and having to force them in.]

14. Lower the new radiator into the engine-bay, pushing the guide-pins firmly into the bushes.

15. Bolt the PAS-fluid cooler back into place, with the pipes over the radiator, using a 10mm wrench.

16. Push the pin on each top-mount back down into the bushes on the top of the radiator and replace the two 12mm bolts.

17. Push the two large rubber-hoses onto the new radiator [a tiny bit of washing-up liquid might help] and tightly secure them with the jubilee clips.

18. Push the rubber-hoses back onto the overflow at the top-left of the radiator and either end of the header-tank overflow-pipe. Replace the finger-clips.

19. Refill the system with 6.5 litres of a half water/half coolant mixture using the spout next to the battery or the header-tank and letting it run through.

20. Replace the header-tank cap and the front under-tray. You're done!
